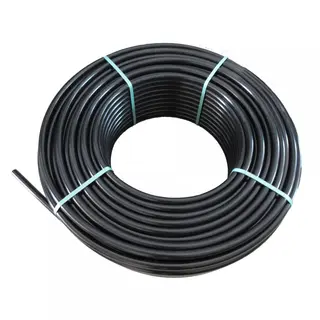

Topper PE pipe manufacturer in China offers PE (LDPE) irrigation pipes / tubes, OD 12-25mm, WT 0.8-2.3mm, 0.25-1.0MPa, UV resistance, Can be customized.
Request a quoteTags:
Key Specifications / Features
Specifications:
Description:
| NO. | Name | Diameter x Thickness (MM) | Pressure | G.W (KG) | Package (M/Roll) | Size (CM) |
| TPLP1208 | LDPE Pipe | 12x0.8 | 0.25MPa | 14 | 500M | 70x32 |
| TPLP1210 | 12x1.0 | 0.40MPa | 17.5 | 500M | 70x32 | |
| TPLP1214 | 12x1.4 | 0.8MPa | 23.5 | 500M | 70x32 | |
| TPLP1610 | 16x1.0 | 0.4MPa | 24 | 500M | 90x35 | |
| TPLP1612 | 16x1.2 | 0.63MPa | 28 | 500M | 90x35 | |
| TPLP1614 | 16x1.4 | 0.8MPa | 32 | 500M | 90x35 | |
| TPLP1616 | 16x1.6 | 1.0MPa | 36 | 500M | 90x35 | |
| TPLP2013 | 20x1.3 | 0.4MPa | 14.5 | 200M | 80x35 | |
| TPLP2015 | 20x1.5 | 0.8MPa | 18 | 200M | 80x35 | |
| TPLP2020 | 20x2.0 | 1.0MPa | 23 | 200M | 80x35 | |
| TPLP2212 | 22x1.2 | 0.4MPa | 15.5 | 200M | 90x32 | |
| TPLP2214 | 22x1.4 | 0.63MPa | 18 | 200M | 90x32 | |
| TPLP2215 | 22x1.5 | 0.8MPa | 19.5 | 200M | 90x32 | |
| TPLP2514 | 25x1.4 | 0.4MPa | 21 | 200M | 90x35 | |
| TPLP2518 | 25x1.8 | 0.63MPa | 26.5 | 200M | 90x35 | |
| TPLP2520 | 25x2.0 | 0.8MPa | 29 | 200M | 90x35 | |
| TPLP2523 | 25x2.3 | 1.0MPa | 34 | 200M | 100x35 |
Description:
LDPE pipes are mainly used in the branch pipeline of irrigation system and able to save a great deal of time due to their easy to install and operate characteristics.
• Service life of over five years in the open - LDPE pipes are made of first-rate polyethylene raw materials with high-quality carbon black masterbatch, anti-UV and anti-aging agents.
• We provide more standard products made by advanced extrusion molding technique and production process. The error margin of wall thickness is controlled within 3%.
• The specifications and pressure rating of our products are customizable according to demand.
